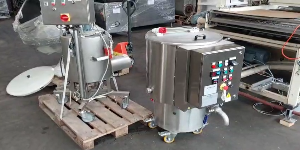

Coating machine for dragees - 43286

for coating nuts, dried fruits, almonds, etc.

year 2013 (dragee pan is older)

consisting of:

1 x BRUCKS coating kettle, stainless steel, type 8 ES

capacity up to 100 kg

adjustable tilt angle

outer diameter 1000 mm,

opening diameter 635 mm, depth approx.720 mm

1 x mobile dosing and spraying unit for chocolate on dragées

consisting of:

container 30 l, double-walled, with heating,

dosing pump for chocolate with spray nozzle,

heatable pipes, nozzle with compressed air

with control cabinet for controlling the plant,

everything on a mobile frame, stainless steel,

space requirement: approx. 600 x 500 x 1600 mm high,

weight approx. 150 kg

1 x double-walled stainless steel container 150 l full capacity,

with flat double-walled base,

double-walled wall and container base with built-in water drainage,

water connections with quick coupling,

for connecting external heating/cooling,

with removable anchor agitator by means of quick coupling,

for quick cleaning during mass changes

wall and floor wiping due to movable plastic wipers,

driven by geared motor, under the container,

thus guaranteed product tightness and easy cleaning,

drive 230/400 V, 50 Hz, 1.1 kW.

container with stainless steel lid and tilting opening for loading,

with outlet opening at a height of 1000 mm (or according to customer requirements)

electrical control cabinet for the drive, display, cover protection,

incl. digital temperature sensor for mass

space requirement: 1200 x 800 x 1400 mm,

weight approx. 300 kg
