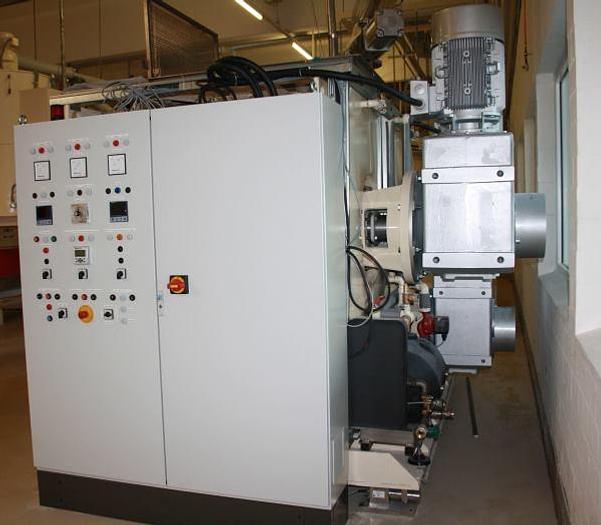

conche - 81561

for dry mixing, conching and depositing liquid and paste-like chocolate masses consisting of: casing with water jacket 2 stirring elements in sturdy design 1 stirring and conveying specialized screw (emptying screw) 6 bearing flanges for supporting shafts and drives, with automatic bearing lubrication feeding opening with rotating blades for closing open and close during the conching or emptying process, manually via control cabinet or via programming possible discharge screw, with smaller agitator element, operating counter-rotating in mixing operation discharge via emptying opening 2 gearboxes at 45/55 kW for the drives of the two stirring elements and 1 gearbox, 11 kW, for the discharge screw with two speeds each left- and right-hand operation possible, start/stop of the mixing elements for both directions of rotation, either via control cabinet manually also possible via external control display for current consumption of the two agitator motors runtime display for conching process circulation pump for the water cycle control cabinet, star-delta control, switchable in rotation direction with temperature control + display, mass thermometer, display of the actual value CE marking, declaration of Conformity The following key figures must be observed: nominal load: 5.000 kg execution in normal steel coating in RAL 1015 standard (or as per customer requirements) drive power of the agitator motors: 15/30 rpm [1/min.] of the stirring elements at corresponding 45/55 kW drive power of the emptying screw: 10 rpm [1/min.] at 11 kW Optional can be offered: chocolate pump, double-walled, 5,000 kg/h pump control can be manual via control cabinet and via external control, supply + return "Start/Stop" built-in boiler with electric heating, 15 kW heating capacity closed water cycle mounted on the machine, with plate heat exchanger, with 3-way valve for control of the cooling with temperature control + display of actual value, setpoint with regulation of water temperature via setpoint chocolate temperature electrical control cabinet with SIEMENS PLC, soft starters for current limiting, automatic program sequence by time, temperatures, recipes, ventilation, etc. ex our warehouse You can find more conches here: https://www.data.schokoma.de/en/listings?q=conche
