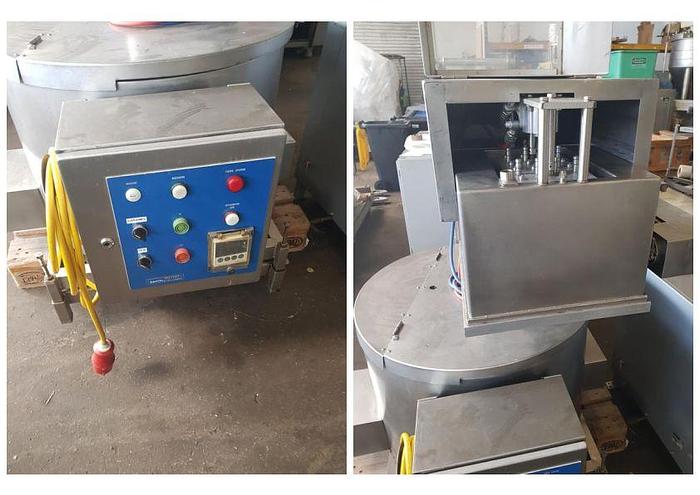

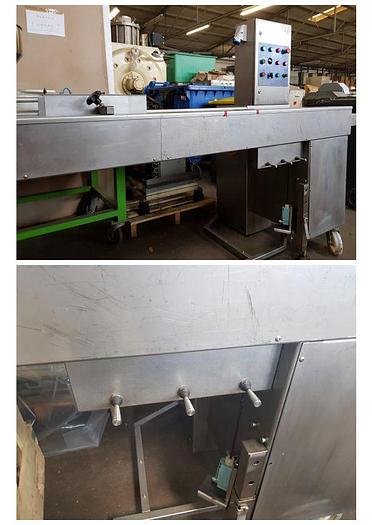

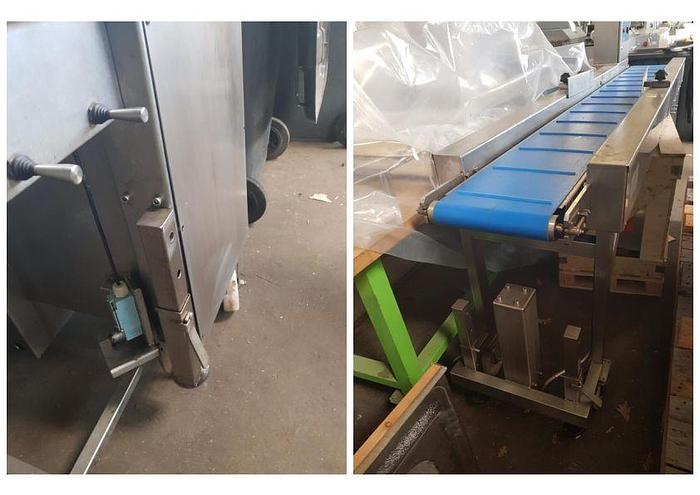

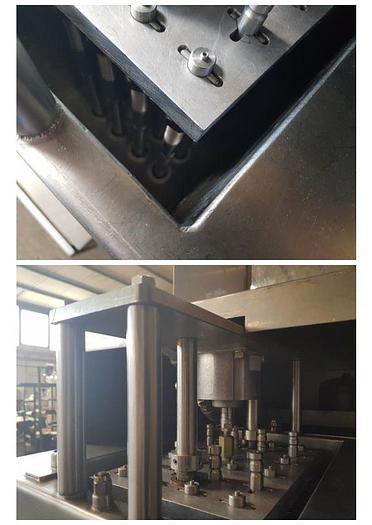

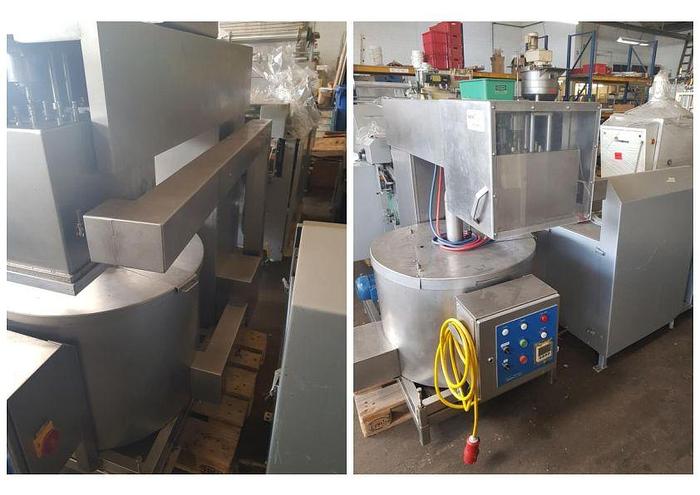

Chocolate dosing machine - 71231

for dosing into molds for various masses: fruit fillings, fondant, fats, chocolate, etc. weight adjustable according to time and pump output with double-walled, heatable container, approx. 150 l, with agitator with heatable circulation pump and circulation pipes heated dosing head for 24 pistons, opening simultaneously synchronized with the conveyor belt and timed from the conveyor belt via a timer depositing head with overflow for a constant level with belt drive and 6 bar compressed air connection electrical requirement: 400 V, 16 A connection dimensions: depositing head: 1,000 x 1,500 mm deep x 1,600 mm high weight: approx. 600 kg conveyor belt: 3,200 x 1,000 x 1,600 mm high weight: approx. 350 kg dimensions when installed: 3,200 x 1,600 x 1,600 mm high from our warehouse
