melting tank - 27128

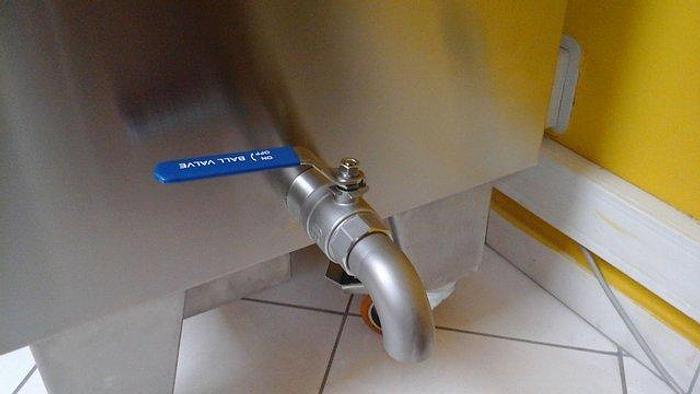

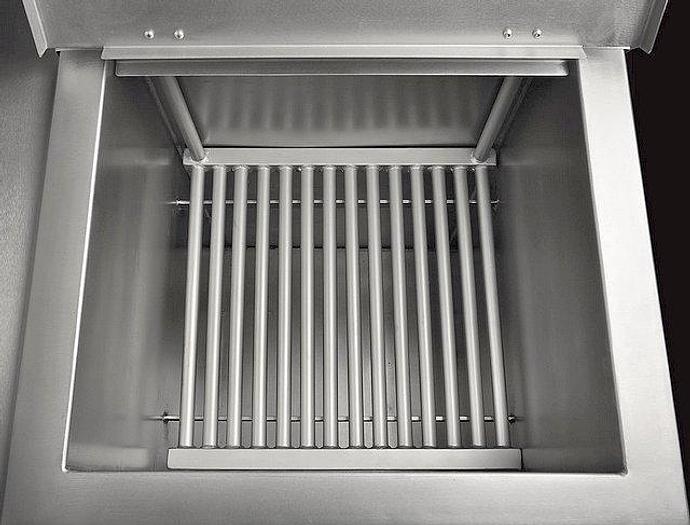

melting capacity: 25 kg/h for melting vegetable fats, chocolate cocoa butter in blocks heatable melting grid in the product tank Content under the spiral: 100 l possibility of feeding a block of 25 kg (400 x 250 x 330 mm) to introduce insulated, electro-welded AISI 304 stainless steel container double wall for temperature adjustment of the container walls and the container bottom heating via electrical resistors mineral wool insulation on the walls removable AISI 304 stainless steel outer casing container and snake equipped with autonomous heating system to shorten the melting time hot water circulation in the coil forced circulation of hot water in the tank top loading and inspection hatch with gas piston manual outlet temperature controlled spout 240 mm high connection for displacement pump for product outlet electrical control panel tested according to EC standard with the following controls: digital water temperature setting for heating the container digital water temperature setting for heating the coil digital product thermometer, control panel for product pump, mushroom-shaped emergency switch dimensions: 900 x 615 x 1.115 mm high

brand-new

ex location

upon request: product outlet slide pump higher resistances Please specify when ordering which cable length and which connector you wish.
